Understanding Threads in Spring WebFlux, Couchbase, Kafka, and Kubernetes: A Practical Deep Dive

Introduction

In the era of traditional Spring MVC, threading was simple: One Request = One Thread. If your application got slow, you looked at the stack trace of that one thread.

Modern cloud-native systems have shattered this simplicity. If you are running a Spring WebFlux application integrated with Kafka and Couchbase on Kubernetes, your logic is no longer a straight line; it is a relay race. A single request might be handled by four different thread pools before a response is sent.

Understanding this “threaded handoff” is the difference between a developer who guesses during an outage and a developer who reads a thread dump like a map.

If you are working with Spring WebFlux, Kafka, Couchbase, and deploying on Kubernetes, your application is already running on multiple thread pools managed by different systems — often without you explicitly creating a single thread.

This article explains:

What threads actually exist in such a system
Who owns them
When and why execution switches between them
How HTTP APIs and Kafka consumers behave differently
How tracing, logging, and context propagation work across threads

The goal is not just understanding — but being able to debug thread dumps confidently in production.

1. First Principle: Threads vs Logical Flow

A critical mental shift is required when working with reactive systems.

A request or event is a logical flow — not a thread.

In traditional blocking systems:

One request → one thread → end of request

In reactive systems:

One request/event
Multiple execution segments
Each segment may run on different threads
Context is propagated logically, not via ThreadLocal

Thread dumps therefore show infrastructure, not business flows directly.

2. The Main Thread Categories in a WebFlux + Kafka System

Let’s break down the most common threads you will see.

When you trigger a jstack or a heap dump in a production environment, you will see several recurring “characters.” Let’s identify who they are and what they own.

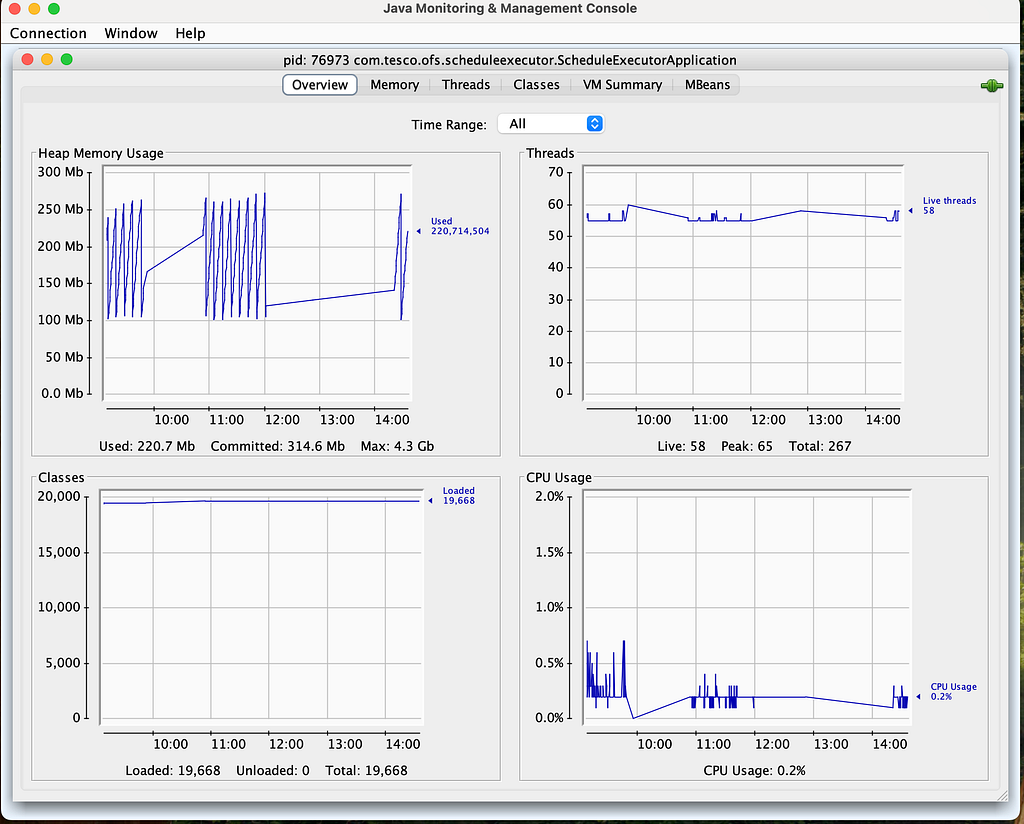

jconsole helps is visualise and see the information of the threads our process is using. jconsole comes as part of JDK environment.

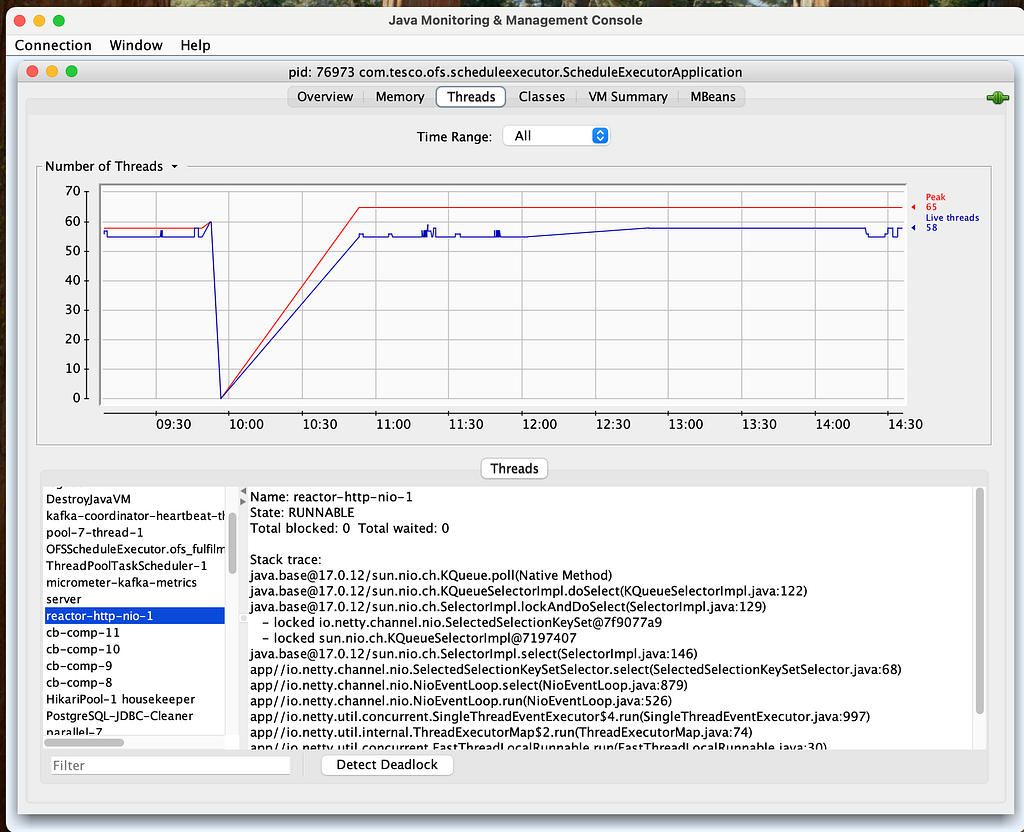

Specific to threads- in this case reactor-http-nio-*

2.1 reactor-http-nio-* — WebFlux / Netty Event Loop

Owner: Netty (used by Spring WebFlux)

Quantity: Usually matches the number of CPU cores

Purpose

Accept HTTP connections
Read/write network data
Schedule reactive pipelines

What it should do

Lightweight CPU work
Reactive operator orchestration

What it must never do: If you perform a Thread.sleep() or a blocking SQL call here, you aren’t just slowing down one request—you are potentially stopping thousands of other requests from even being accepted.

Blocking I/O
Database calls
Sleeping
.block()

If a reactor-http-nio thread blocks, all requests mapped to that event loop stall.

These threads are intentionally few in number.

2.2 boundedElastic-* — Reactor Blocking Scheduler

Owner: Project Reactor

Purpose: Safe execution zone for blocking work

Sizing: Defaults to 10 x number of CPU cores

Used for

Blocking database calls
Legacy libraries
File I/O
Blocking Couchbase APIs

Characteristics

Threads are created on demand
Upper bounded (≈ 10 × CPU cores)
Idle threads are evicted

This scheduler is the bridge between non-blocking WebFlux and blocking libraries.

When you use .subscribeOn(Schedulers.boundedElastic()), you are telling Reactor: “I know this specific task (like a File I/O or a legacy JDBC call) is going to sit and wait. Don’t do it on my fast Event Loop; do it here.

2.3 Couchbase SDK Threads

You will typically see:

cb-io-* — network I/O. Handles the low-level Netty I/O with the Couchbase cluster.
cb-comp-* — computation, retries, deserialization, Handles the “heavy lifting” — encoding/decoding JSON, handling retries, and managing circuit breakers.
cb-event-loop-* — internal scheduling

Key point

These threads are owned by the Couchbase SDK
Your application code does not run directly on them

If you use:

ReactiveCouchbaseTemplate → fully non-blocking
Blocking SDK → Reactor offloads first to boundedElastic

If you see high CPU on cb-comp threads, it often means your JSON documents are massive and the cost of serialization is bottlenecking your app.

2.4 Kafka Consumer Threads

Often named like:

OFSScheduleExecutor-*
kafka-consumer-*

Owner

Kafka client / Spring Kafka

Purpose

Poll Kafka
Invoke @KafkaListener
Commit offsets

Very important rule:A Kafka consumer thread must never block for long.

Blocking here leads to:

Missed polls
Consumer group rebalances
Duplicate processing
Throughput collapse

Kafka threads are not reactive by default.
If your @KafkaListener logic takes too long, the consumer thread won’t call poll() in time. Kafka will assume the consumer is dead, trigger a Rebalance, and stop processing for everyone.

2.5 HikariCP Threads

Example:

HikariPool-1 housekeeper

Purpose

Pool maintenance
Leak detection
Idle eviction

These threads do not execute queries and are normal in dumps.

2.6 Async Logging Threads

Example:

AsyncAppender-Worker-ASYNCSTDOUT

Purpose

Perform log I/O asynchronously
Prevent business threads from blocking on logging

Logs are handed off, not written inline.

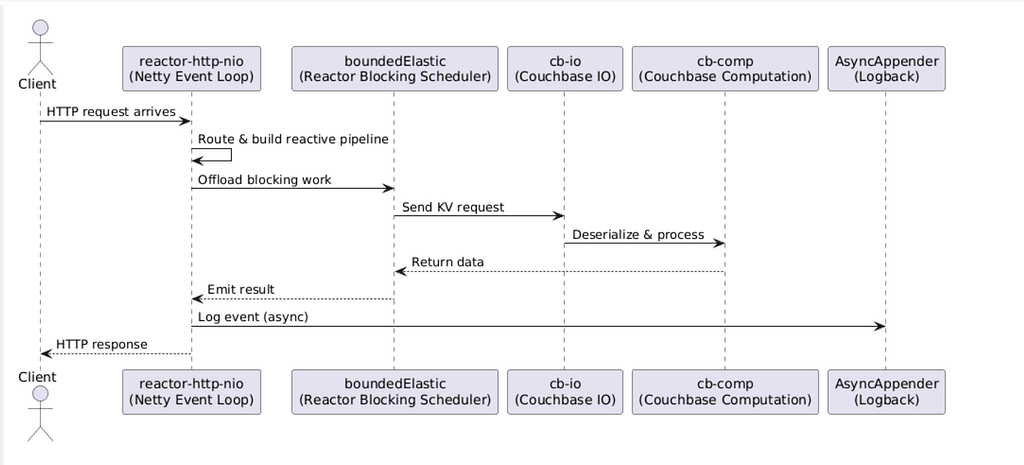

3. HTTP API Execution Flow (WebFlux)

Let’s walk through a real API request.

Step 1: Request Arrival

Client sends HTTP request
Handled by reactor-http-nio-*
Request is decoded and routed

At this point:

No business logic executed yet
Still non-blocking

Step 2: Controller & Handler Wiring

Your controller builds a reactive pipeline:

return service.getOrder(id)
              .map(...)
              .flatMap(...);

This phase:

Constructs operators
Does not execute blocking code

Still on:

reactor-http-nio

Step 3: Blocking Boundary

If blocking work is needed:

Mono.fromCallable(() -> blockingDbCall())
    .subscribeOn(Schedulers.boundedElastic());

Execution switches schedulers:

reactor-http-nio → boundedElastic

This is not a method call — it is deferred execution on another thread pool.

Step 4: Couchbase Interaction

Inside boundedElastic:

Blocking Couchbase API is called
Couchbase SDK internally uses:
cb-io for network
cb-comp for computation

Your code does not manage these threads.

Step 5: Response Assembly

Once data is available:

Control returns to Netty
Response is serialized
Socket write happens

Back on:

reactor-http-nio

Step 6: Logging & Tracing

TraceId is propagated via Reactor Context
MDC is restored per signal
Logs are handed to async logging thread

Business execution does not wait for logging.

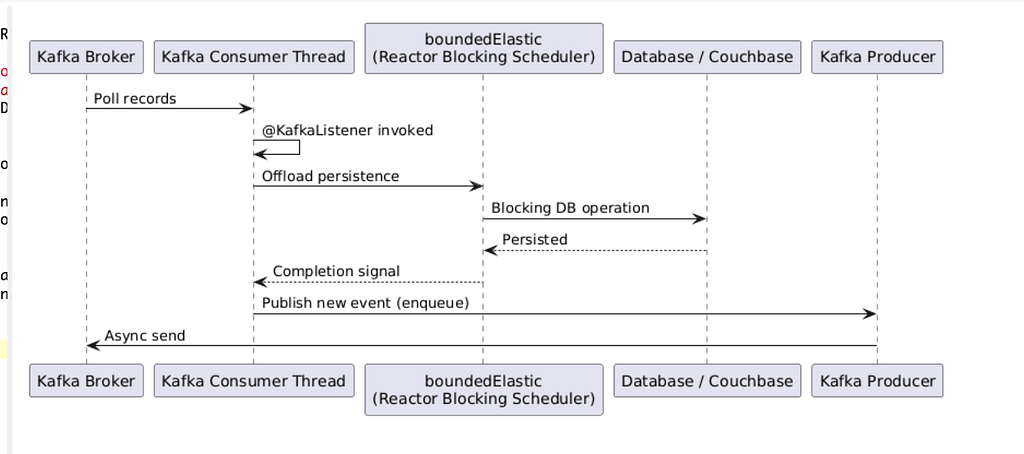

4. Kafka Consumer Execution Flow

Kafka has a fundamentally different model.

Unlike HTTP, which is “Push” (the client sends data), Kafka is “Pull.” This changes the threading risks significantly.

Polling: The Kafka Consumer thread fetches a batch of 500 records.
Processing: By default, Spring Kafka executes your listener on that same consumer thread.
The Bottleneck: If record #1 triggers a slow DB call, records #2 through #500 sit in memory, waiting.
The Solution: Offload the processing to parallel() or boundedElastic() to keep the Kafka consumer thread free to keep polling.

Warning: If you offload Kafka processing to another thread, you must handle Manual Acknowledgments carefully. If you “ack” the message on the Kafka thread before the boundedElastic thread finishes, you risk losing data if the app crashes.

Step 1: Polling

Kafka client thread:

Polls records
Invokes @KafkaListener

Execution starts on:

Kafka consumer thread

Step 2: Listener Code

If your listener does:

@KafkaListener
public void consume(Event e) {
    repository.save(e);
}

That work runs directly on the Kafka thread.

Blocking here is dangerous.

Step 3: Correct Offloading

Proper design:

Mono.fromCallable(() -> repository.save(e))
    .subscribeOn(Schedulers.boundedElastic())
    .subscribe();

Execution becomes:

Kafka thread → boundedElastic → DB → boundedElastic

Kafka thread remains free to poll.

Step 4: Publishing New Events

Kafka producer:

Enqueues records quickly
Actual network send happens on Kafka I/O threads
Producer calls are effectively non-blocking

5. Context Propagation (Tracing & MDC)

Reactive systems break ThreadLocal assumptions.

In a blocking app, we use ThreadLocal to store TraceIDs or UserIDs. In WebFlux, this is broken because your code moves from reactor-http-nio to cb-comp

Solutions:

Reactor Context: A specialized Map that travels with the data stream, not the thread.
Micrometer Tracing / Brave: Automatically “hoists” the TraceID from the Reactor Context into the log MDC whenever a thread starts working on a specific task.
MDC hooks

This ensures:

Same TraceId across multiple threads
Logs remain correlated even with async execution

6. Kubernetes and Thread Behavior

Your threading behavior in a local Docker container will differ from a production Kubernetes pod due to CPU Limits.

CFS Quotas: Kubernetes uses “throttling” to enforce CPU limits. If your app has a limit of 0.5 CPU, but you have reactor-http-nio trying to use 8 cores, the Linux kernel will “pause” your process.
Symptoms: You will see “Stuttering” latency — requests take 10ms, then suddenly 200ms, then 10ms again.
Solution: Ensure your JVM is “Container Aware” (Java 11+). Use -XX:ActiveProcessorCount to manually align the JVM’s perception of “Cores” with your Kubernetes limits.

Example:

limits:
  cpu: "1"

Results in:

Fewer parallel() threads
Smaller boundedElastic cap

Thread dumps look small by design.

Conclusion

Understanding threads in a WebFlux + Kafka system is about ownership and responsibility, not memorizing thread names.

Netty threads orchestrate
Reactor schedulers isolate blocking
SDK threads handle infrastructure
Kafka threads must stay responsive
Context flows logically, not per thread

Once you internalize this, thread dumps stop being noise — and start telling a story.

The next time there is a performance issue, don’t just look for “RUNNABLE” threads. Ask these three questions:

Are my reactor-http-nio threads blocked? (If yes, you have a major architectural bug).
Is my boundedElastic pool saturated? (If yes, your downstream dependencies—Couchbase or APIs—are slowing down).
Are my Kafka consumers rebalancing? (If yes, your processing logic is too slow for the consumer poll interval).

Happy Building! 🙂
