What a REAL Spring Boot Microservices Architecture Looks Like in Big Tech

I’ve built monoliths that crumbled under load. I’ve also built microservices that looked perfect on Confluence — and failed badly in production.

Here’s what it actually looks like, without the textbook fluff.

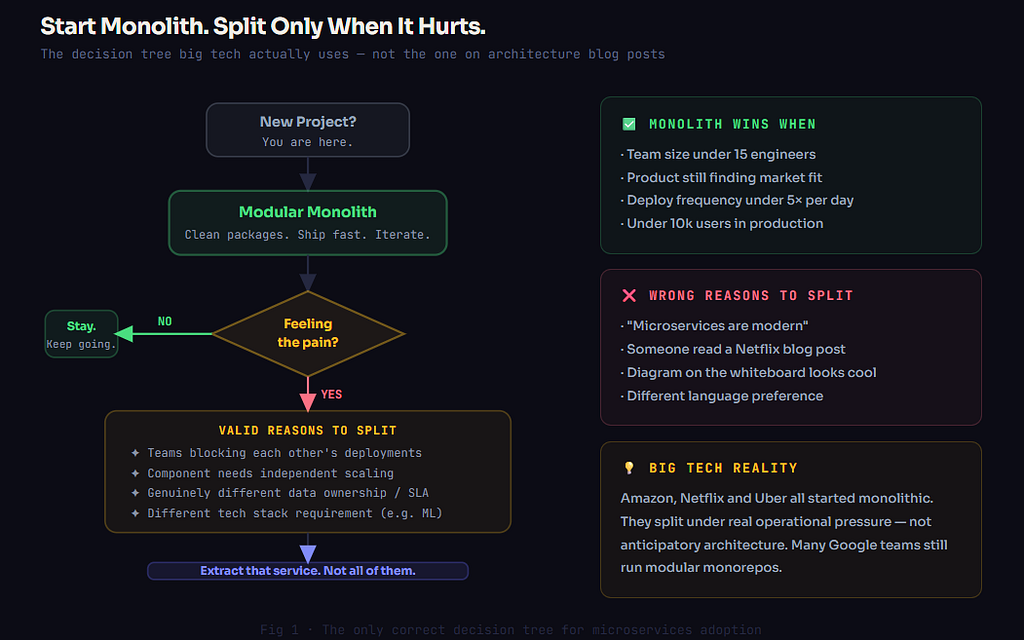

RULE #1: DON’T START WITH MICROSERVICES

Most teams reach for microservices before they’ve felt any real pain. That’s almost always wrong. Start with a modular monolith.

Split only when you have a concrete, operational reason — not an architectural preference.

The diagram above shows exactly when the switch is warranted. Until you hit those triggers, the monolith is faster to ship, easier to debug, and cheaper to run

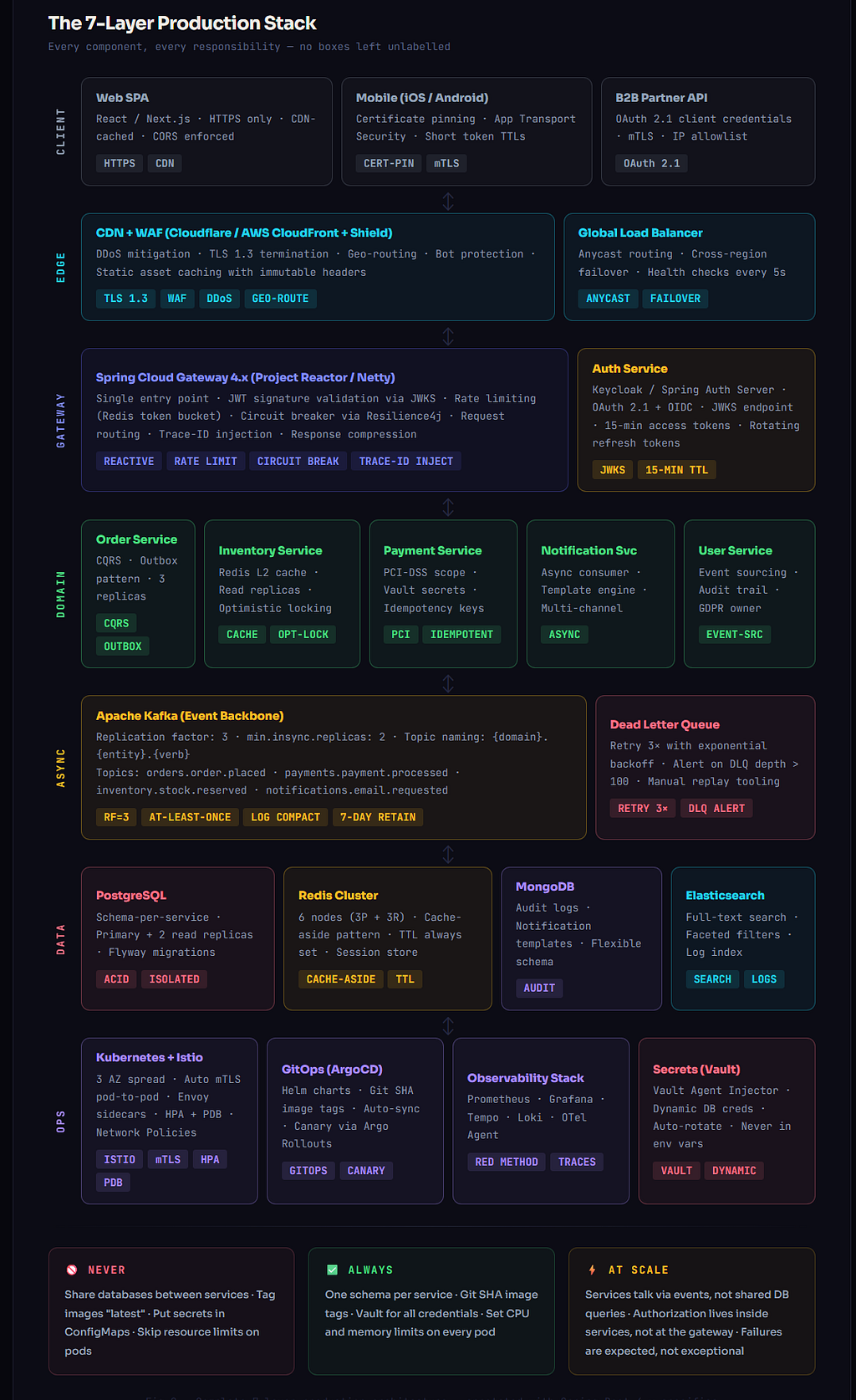

THE SEVEN-LAYER STACK

When microservices are genuinely needed, the real production stack has seven distinct layers — not three boxes connected by arrows.

Every component in that diagram has a specific responsibility. The ones teams most often get wrong:

The API Gateway validates JWT signatures. It does not make authorization decisions — that belongs inside each service.

Services never share a database. If two services need the same data, one publishes an event or exposes an API.

Secrets never go in ConfigMaps or environment variables. Vault Agent Injector mounts them as files at pod startup.

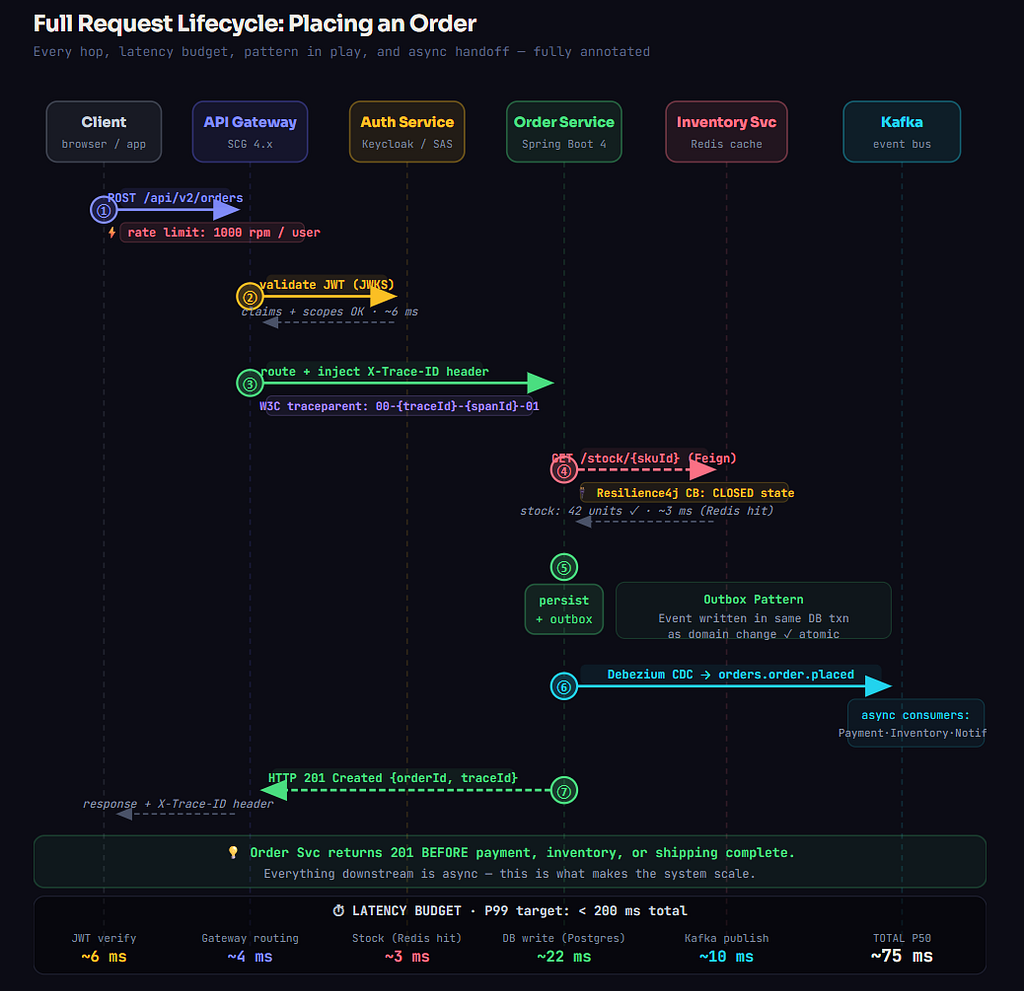

HOW A REQUEST ACTUALLY TRAVELS

Here’s every hop a POST /orders makes — from browser click to database commit — with the latency budget at each step.

The most important thing in that diagram: the Order service returns HTTP 201 before payment is charged, before inventory is reserved, before anything downstream completes.

It writes to the database, publishes one Kafka event, and gets out of the way. Everything else is asynchronous. That’s the shift that makes these systems scale.

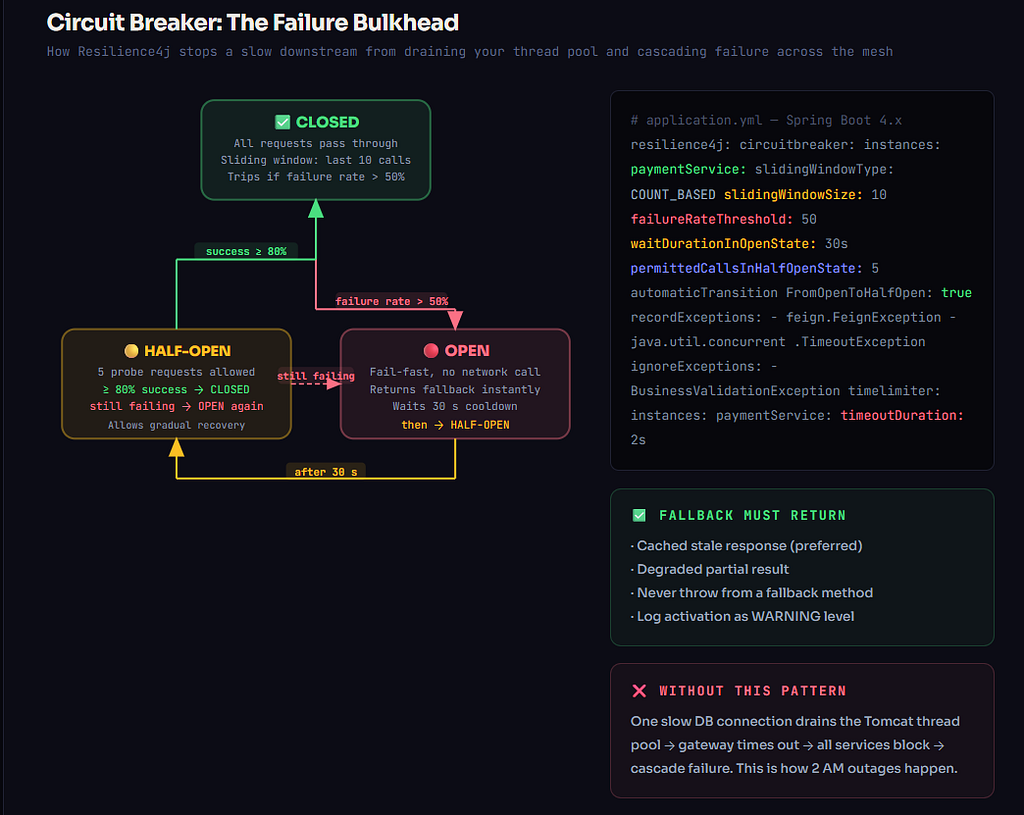

CIRCUIT BREAKERS: BECAUSE EVERYTHING FAILS

In a distributed system, failures aren’t exceptional — they’re scheduled. The circuit breaker is what prevents one slow downstream from taking down the entire mesh.

Three states. CLOSED (normal), OPEN (fail-fast with fallback), HALF-OPEN (probe). The config snippet in the diagram is production-ready — copy it.

The fallback must return something useful: a cached response, a degraded result. Never throw from a fallback.

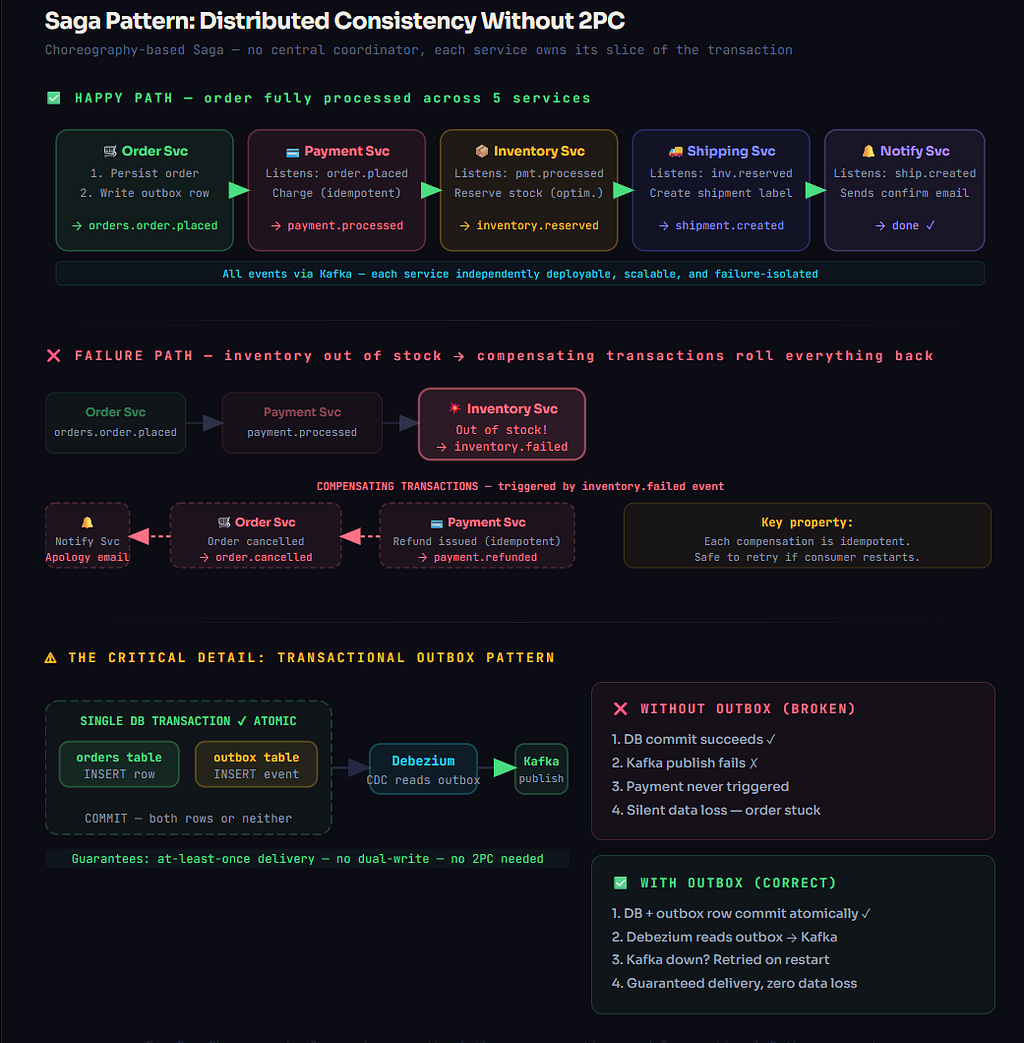

THE SAGA PATTERN: NO 2PC NEEDED

Five services involved in one order. One fails midway. How do you roll back without distributed locks or two-phase commit? The Saga pattern.

Each service reacts to an event, does its local transaction, emits the next event. No central coordinator.

The critical detail most articles skip is the Transactional Outbox Pattern. Write the Kafka event to an outbox table in the same DB transaction as your domain change. Debezium reads the outbox and publishes to Kafka.

Without this, a DB commit that succeeds followed by a failed Kafka publish means a silent data loss. With the outbox, that scenario is impossible.

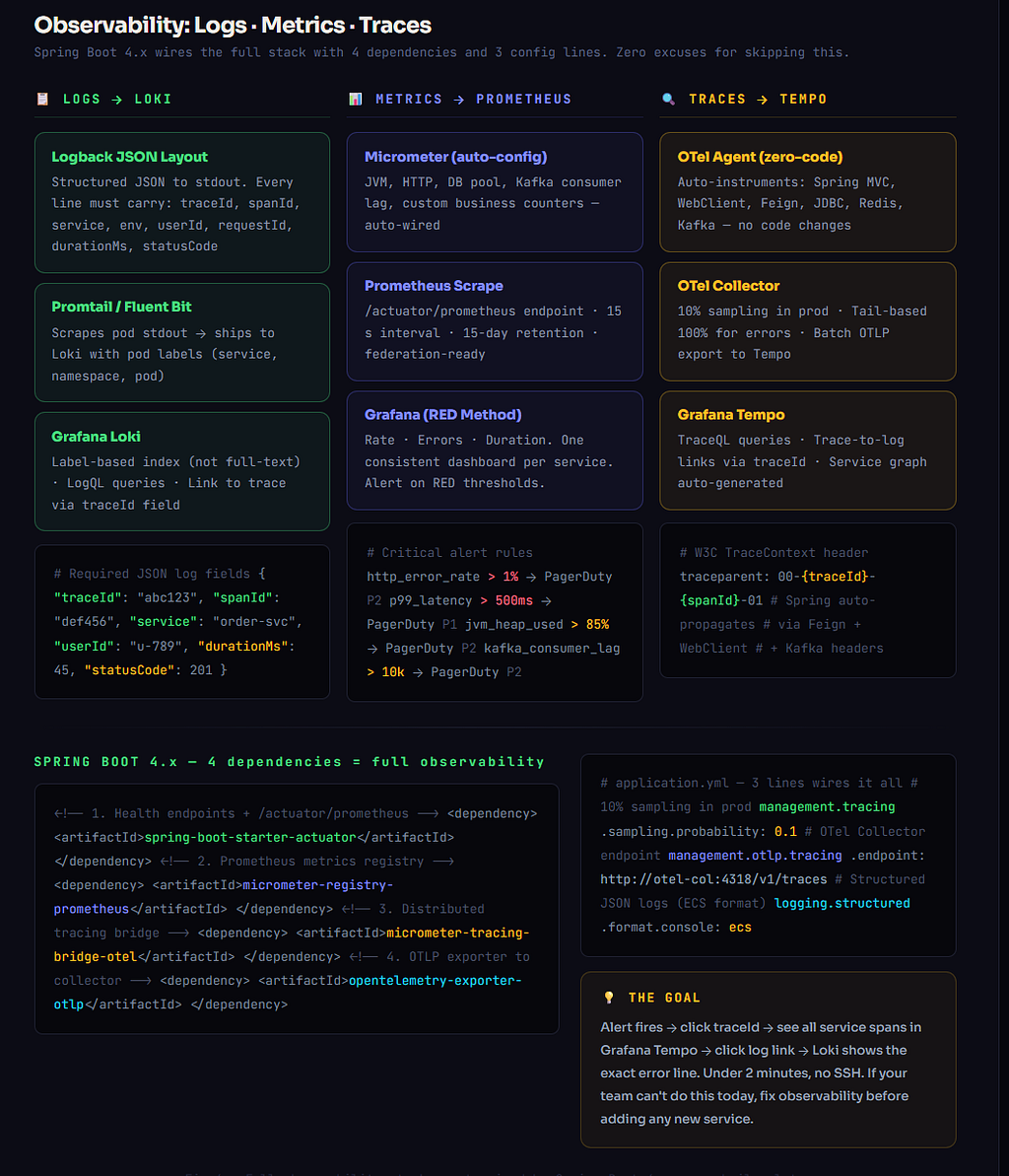

OBSERVABILITY: YOU CAN’T DEBUG WHAT YOU CAN’T SEE

Spring Boot 4.x auto-wires logs, metrics, and distributed traces with four dependencies and three config lines. There’s no valid excuse for skipping this.

The goal is simple: alert fires → click traceId → see all service spans in Grafana Tempo → click log link → Loki shows the exact error line. Under two minutes from alert to root cause.

If your team can’t do that today, fix observability before adding another service

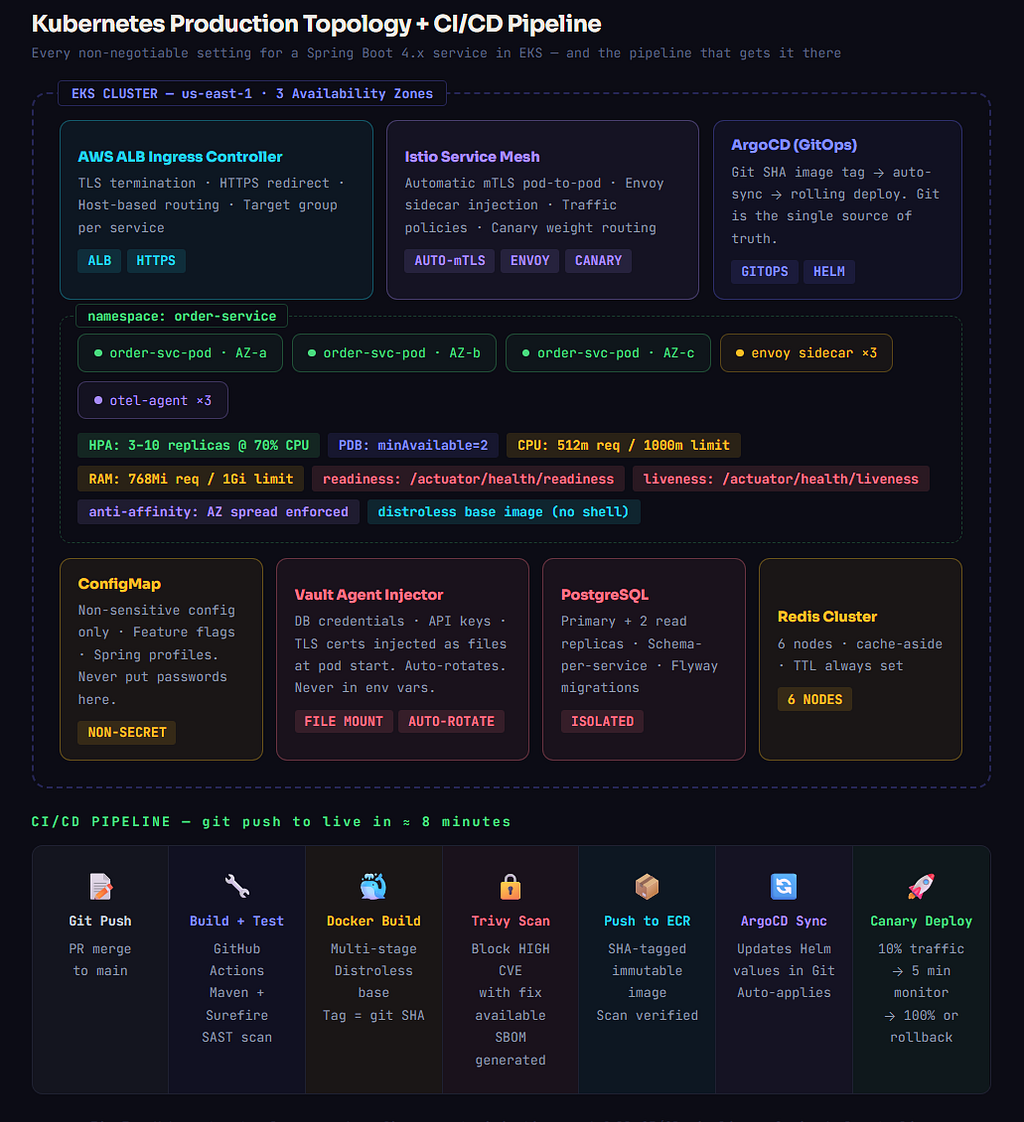

KUBERNETES: THE NON-NEGOTIABLES

The diagram covers every production setting. The ones that cause the most outages when missed:

Always set resource limits: Without these guardrails, a single runaway pod can consume all available CPU/memory, triggering a chain reaction that evicts every other pod on the node.
Keep readiness and liveness probes separate: These serve distinct functions. Liveness restarts a failing container; readiness stops traffic to it. Conflating them often leads to infinite restart loops instead of a simple traffic cut.
Set a Pod Disruption Budget (e.g., minAvailable: 2): This is your safety net during maintenance. It ensures that rolling deployments or node upgrades never drop your active replica count to zero.
Enforce AZ anti-affinity: High availability is an illusion if all your replicas land on the same node. Anti-affinity rules ensure your pods are distributed across failure domains so a single node crash doesn’t mean total downtime.

THE INTERVIEW QUESTION THAT SEPARATES ARCHITECTS

“How do you handle partial failures across five services in a single business transaction?”

Weak answer: circuit breakers and retries.
Strong answer: Saga pattern with compensating transactions for consistency, Transactional Outbox to guarantee event delivery, Resilience4j bulkheads to contain blast radius, and full distributed tracing so you can diagnose it at 2am.

The gap between those two answers is the gap between someone who’s read about these systems and someone who’s operated them.

WHAT TO DO NEXT

Starting fresh → build a modular monolith.
Already running microservices → audit observability first.
Preparing for architect interviews → know the failure mode at every layer boundary, not just the happy path.

The systems that survive production aren’t the most elegantly designed. They’re the ones built by teams who expected things to break.
